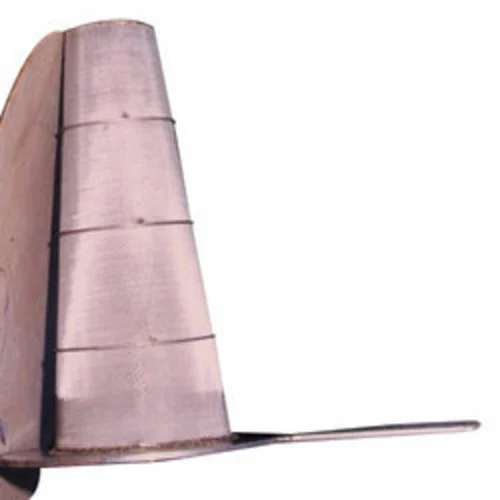

Conical In Line Strainer

Brand	Vedant Engineering Works
Material	Metal
Valve Type	Round
Media	Water
Color	Multi color
Automation Grade	Automatic

Conical In Line Strainer

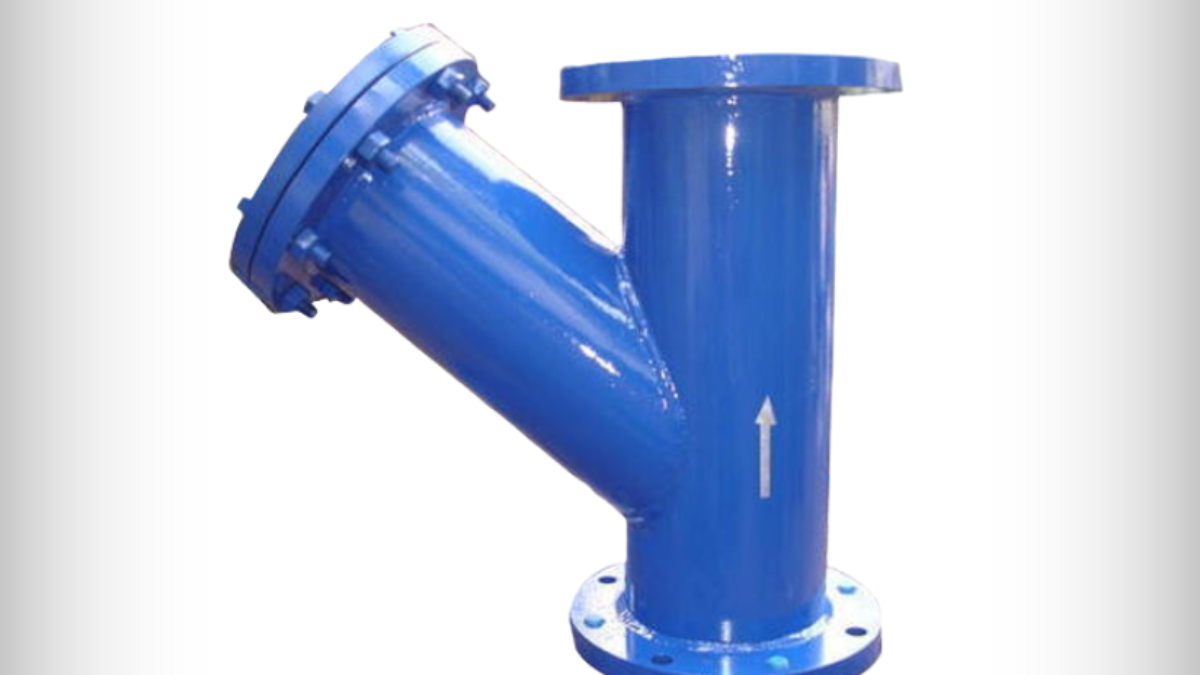

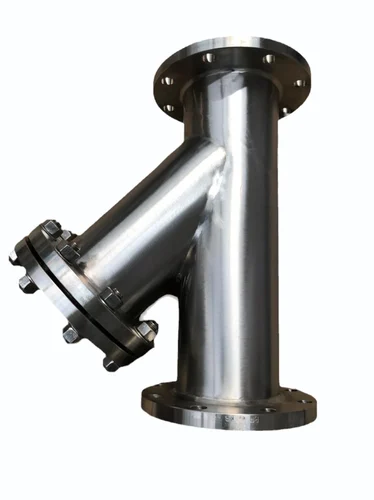

Y Type Strainer

₹ 900/ Piece

We make available to our clients Y Type Strainer that have low pressure as higher flow area. Furthermore, the strainer improves the clearance in the medium, increases the life of the valves, protect expensive pumps, instruments and other equipment. The strainers are accessible with drain plug that can be replaced with Ball Valve for frequent blow off.

Features:

• Face to Face: As per Y type
• End Connections: Socket weld to ANSI B 16.34

Dimension(mm):

Size	THDS	A
12	1/2” BSP THD	95
25	1” BSP THD	120
32	11/4” BSP THD	131
40	11/2” BSP THD	142
50	2” BSP THD	160
65	21/2” BSP THD	217
80	3” BSP THD	222
100	4” BSP THD	181

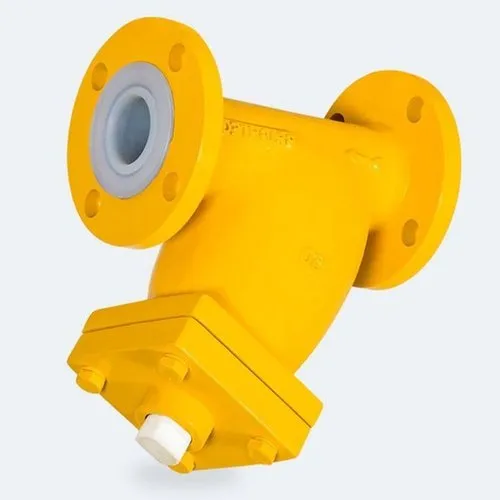

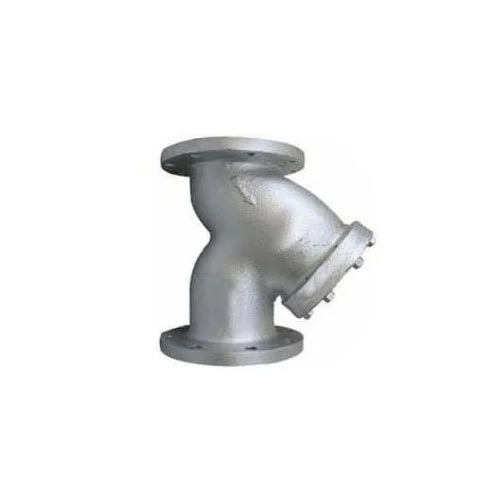

Y Type Flange End Strainer

₹ 950/ Piece

Available with us is a comprehensive range of Y Type Flange End Strainer, which is highly acclaimed for its robust construction and durability. Named as per its shape, this strainer is basically used for course filtration. In addition to this, this range of strainer can be used with fine mesh for large filtration area. Made up of cast iron or cast steel in various grades, this range also comprise flanged and socket weld type end connection.

Features:

• Easy cleaning
• Replacing the element
• Compact size
• Light weight
• Low Pressure drop across the filter

Specifications:

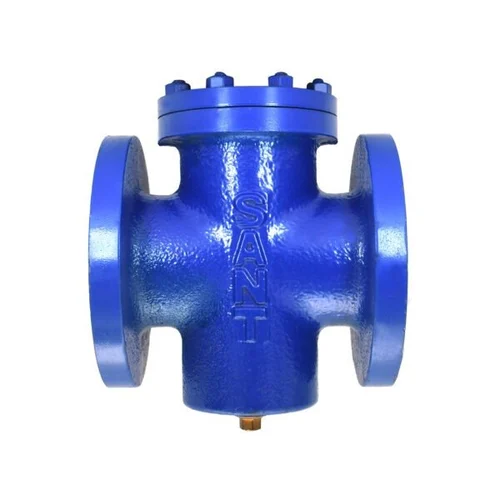

T Type Flange End Strainer

₹ 950/ Piece(s)

Our T Type Flange End Strainer are designed to remove particles from pipelines where a compact accessible strainer is needed for protection of fluid handling systems. Extensively catering to the requirements of chemicals, petrochemicals, fertilizers and other allied industries, these types of filters provide trouble free functioning, high performance and durability.

Specifications:

S No	Parts Name	Material	Quantity
1	Body	CI	1
2	Cover	CI	1
3	Screen	SS 304/20/40 Mesh	1
4	Gasket	Spiral wound metallic	1
